break
New Member
Posts: 1
|
Post by break on Sept 12, 2022 0:41:58 GMT
Probably really easy but I've had obdeleven for a day so not familiar.
I have a 2022 golf GTI, I used the one click app to get the golf r instrument cluster which I love.
I would like to retain one particular view from the stock GTI that isn't available any more with the r views.
I want the hexagonal circles as an option still. Is there a way in adaptations I can just enable that one too? Do I have to disable another to make it work?
Thanks!
|
|
|
|
Post by platterfoot on Sept 12, 2022 1:36:40 GMT
Display control unit > adaptation > View Activation and set each option one at a time, trial and error that says “not active” to active and see which one re-enables the GTI display. I forget which one does it
|
|
jav89
New Member
Posts: 4
|
Post by jav89 on Jan 5, 2023 15:16:56 GMT
Hello
I have activated the GTI and R display view with the aplication and doesn't have the grille on display.i try activate it in the dashboard module, views activation, and don't get it. Someone kown how can i activate it?. Thanks.
|
|
|
|
Post by mitigating on Jan 7, 2023 5:59:21 GMT

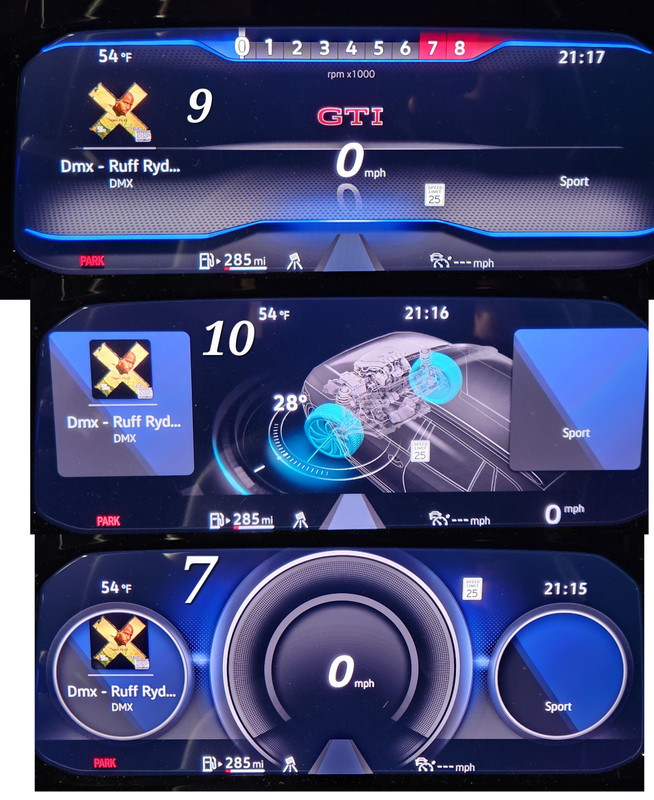

Are you referring to these additional screens or some sort of graphics in them  |
|
|
|
Post by platterfoot on Jan 7, 2023 14:40:08 GMT
What the hell is that middle image and how do you have that?? View 10?
|
|
jav89
New Member
Posts: 4
|
Post by jav89 on Jan 7, 2023 18:30:28 GMT
I are referring the grille like it can see in this photo:  Now my cockpit looks like this:  My car is a golf 8 1.5 tsi r line, its possible the first view whit the grille? |
|
|
|
Post by platterfoot on Jan 7, 2023 20:11:10 GMT
Dashboard > Adaptations > Logo > Logo 4
Honeycomb pattern is exclusive to the GTI logo
|
|
|
|
Post by mitigating on Jan 7, 2023 22:34:40 GMT
Oh my god, if you could turn that stupid pattern off that would be amazing. I also want to retain the GTI logo
|
|
|
|
Post by platterfoot on Jan 7, 2023 22:36:45 GMT
Literally set it to logo 4 for GTI, then set it to logo 10 or something. Should do what you’re looking for.
|
|
|
|
Post by mitigating on Jan 7, 2023 22:43:29 GMT
What the hell is that middle image and how do you have that?? View 10? Yes, that's an option if you enable view 10. Maybe for EV or offroading |
|
|
|
Post by platterfoot on Jan 7, 2023 23:32:22 GMT
.
|
|
jav89
New Member
Posts: 4
|
Post by jav89 on Jan 7, 2023 23:40:50 GMT
Dashboard > Adaptations > Logo > Logo 4 Honeycomb pattern is exclusive to the GTI logo ok, thank you very much. |
|
|
|
Post by larson on Jan 22, 2023 14:30:52 GMT
Are you referring to these additional screens or some sort of graphics in them Hi, how did you success to add the logo GTI on screen 9 ? I add screen 9 and keep my logo 4 on my GTI but no logo on screen 9. Any idea why ? Thanks! |
|
|
|
Post by platterfoot on Jan 23, 2023 2:11:38 GMT
Dashboard > Adaptations > Logo > Logo 4 Honeycomb pattern is exclusive to the GTI logo Right here. Make sure it’s still set |
|
|
|
Post by larson on Jan 24, 2023 12:19:38 GMT
Mine after enable screen 9 And keep logo 4 On my GTI got this. Certainly something else to enable. ![]()   |
|
|
|
Post by platterfoot on Jan 24, 2023 13:27:34 GMT
When you’re on view 9 just cycle through the logos to see if you can get any logo to appear. That is definitely weird
|
|
|
|
Post by larson on Jan 24, 2023 19:26:54 GMT
Tested, only logo R works with screen 9 on my GTI.   |
|
|
|
Post by massimo23 on Jan 25, 2023 23:49:25 GMT
It has to do with the software of the AID. With each production year the Golf 8 has received a newer display unit. See list below.
Prod. Year Part number Software version
MY20 - 5H0920340 1400
My21 - 5H0920340A 3440-3470
My22 - 5H0920340B 5350-5370
My23 - 5H0920340C 7340
|
|
|
|
Post by larson on Jan 27, 2023 5:03:19 GMT
Hi
Thanks for your explaination!
|
|
|
|
Post by mitigating on Jan 27, 2023 10:01:16 GMT
Sorry about that. I'm not used to all of the same model car being on different versions.
I drive a North American 2022 GTI SE. Infotainment hardware is h58 and the software version is 1880. My dashboard's software version is 5370
It makes more sense you don't get the GTI logo on that view because that view is only for golf R models. Maybe they were like
|
|
|
|
Post by hooting on Feb 10, 2023 21:24:27 GMT
Has anyone figured out how to have shift lights in the tach on the GTI like the Golf R?
|
|
|
|
Post by mystiics on Feb 13, 2023 17:31:09 GMT
I’m on H56 and 1788 Software and for me it also won’t display the GTI logo on the R display unfortunately
|
|
|
|
Post by massimo23 on Feb 13, 2023 21:49:17 GMT
Sorry about that. I'm not used to all of the same model car being on different versions. I drive a North American 2022 GTI SE. Infotainment hardware is h58 and the software version is 1880. My dashboard's software version is 5370 It makes more sense you don't get the GTI logo on that view because that view is only for golf R models. Maybe they were like You have the 5H0920340B cluster so the software allows the differents logos appear in the R Display View. Works from My22 Golf 8 cars. The very first Aid cluster from the My20 had the R (R-line) logo with the honeycomb style in the dials. It was removed with the newer clusters. Other differences was the time and temperature on the top part of the screen only added from sw 3450 or the visibilty of the odometer which could only be viewed when the car was switched off. With My23 the newer clusters show the maps between the dials.. |
|
|
|
Post by mimmorline87 on Feb 13, 2023 22:38:27 GMT
Hi, i have a golf 8 eTSI and I can’t enable the views: when I select any view in Dashboard —> adaptations, I disable SFD protection and I apply change, the OBD app says “function not available”. To resolve I thinking to use the apps with credits. It’s safe or dangerous for my car? Thanks
|
|
|
|
Post by mitigating on Mar 20, 2023 2:13:38 GMT
Sorry the late reply , do you have the hood open when you try? The apps are safe but you should be able to enable some of the views.
|
|
|
|
Post by kaanakx on May 26, 2023 6:32:58 GMT
Mine after enable screen 9 And keep logo 4 On my GTI got this. Certainly something else to enable. ![]() How did you get that second view? I have een gti cs 2021 and i like to get that. |
|
|
|
Post by sbk1198 on Jun 1, 2023 3:10:43 GMT
I activated view 9 (from Golf R) which is probably one of my favorites, but there are several other views available that I activated however they don't show up. Pretty much everything from 10 to 16 or whatever the last one is don't show up even when I activate them. Anyone know what's up with that and what those views are?
|
|
|
|
Post by mariogti on Dec 17, 2023 2:46:17 GMT
Are you referring to these additional screens or some sort of graphics in them Hi, how are you? I have a 2021 GTI and I wanted to put a panel like the 2nd photo, how is that possible? I have obdeleven. But I can't put the 2nd mod. and can you help me? |
|
OwnerTR
Junior Member
Seat Ateca FR
Posts: 95
|
Post by OwnerTR on Dec 17, 2023 6:01:29 GMT
17-Dashboard
Adaptation
Offroad => Display (select)
View activation => View 10 (active)
|
|
|
|
Post by mariogti on Dec 17, 2023 22:46:56 GMT
17-Dashboard Adaptation Offroad => Display (select) View activation => View 10 (active) goodnight. I wanted the panel in the 1st photo. I don't have that display, I only have the normal one. How do I put the one with the rotation bar on Top? |
|
